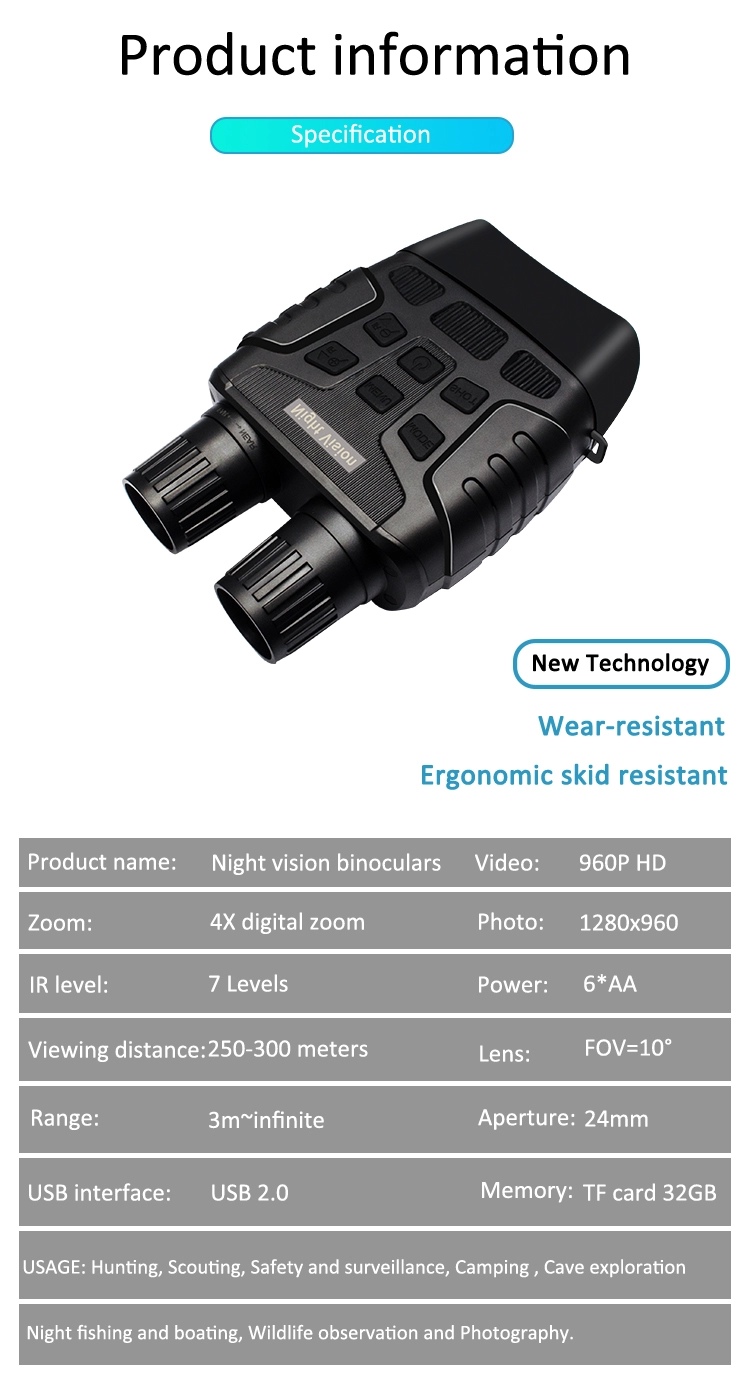

Waterproof Long Range Digital night vision 2.31” HD Screen Camera LS-DB001



微信图片_20200509174330

SPEC
Photo Resolution 1M(1280×960)by interpolation、VGA(640×480)
Video Resolution 960P(1280×960@30FPS )by interpolation、VGA(640×480@30FPS )
IR LED 7 Levels
Lens F1.2 larger aperture， f=25mm，Auto IR filter
Lens Angle FOV=10°，caliber is 24mm

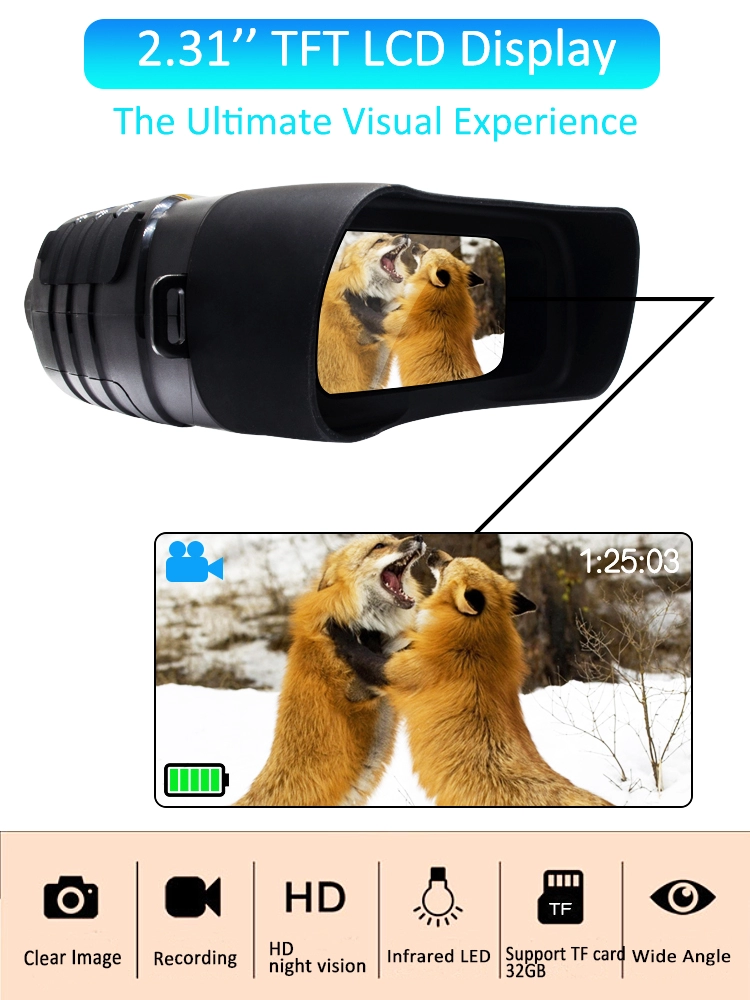

Display Screen Inner screen is 2.31”960*240 TFT LCD，                                                                           Outer screen is 98x48mm,with 3X large window magnifier
Storage Media Micro SD card, up to 32GB
USB Port Micro USB 2.0
MIC NO
Speaker NO
Auto off 3 min/ 5 min/ 10 min/OFF

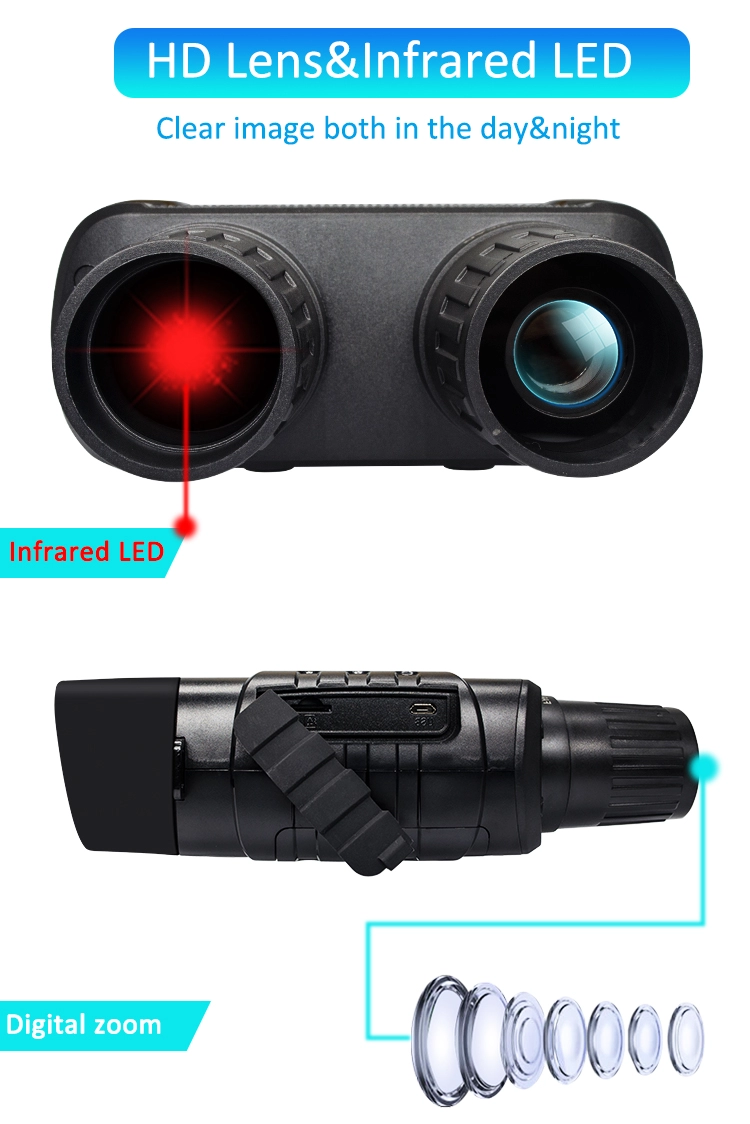

IR LED 3W,850nm strong infrared spotlight ，7 grades infrared adjustment

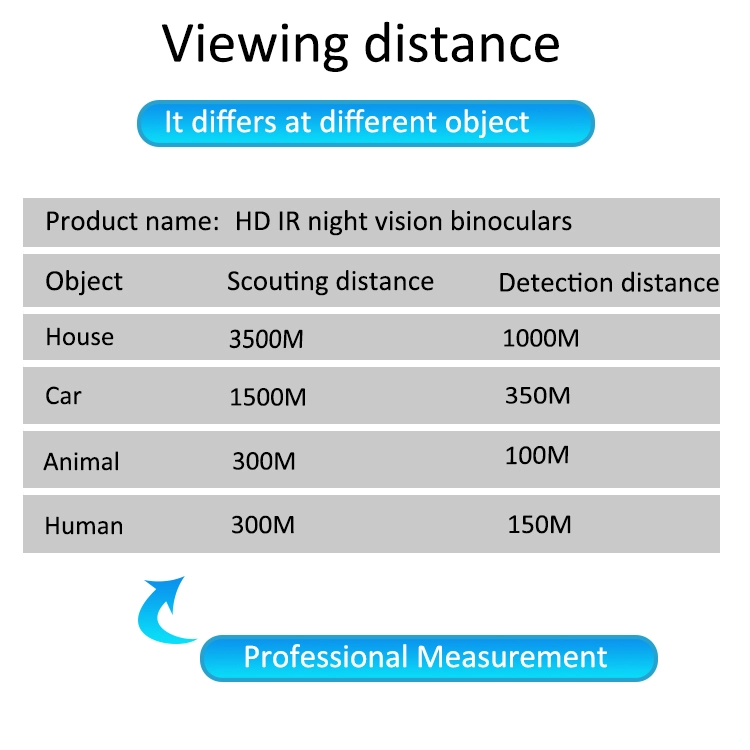

View Distance In Complete Darkness About 150-200 meters
View Distance In Low Light 3 meters～infinity
Digital Zoom Digital Zoom 4X
Power Source 9V；6*AA
OSD Language Multiple languages are optional
Date Stamps  Support to set date and time. Date and time stamp on photo and video files.

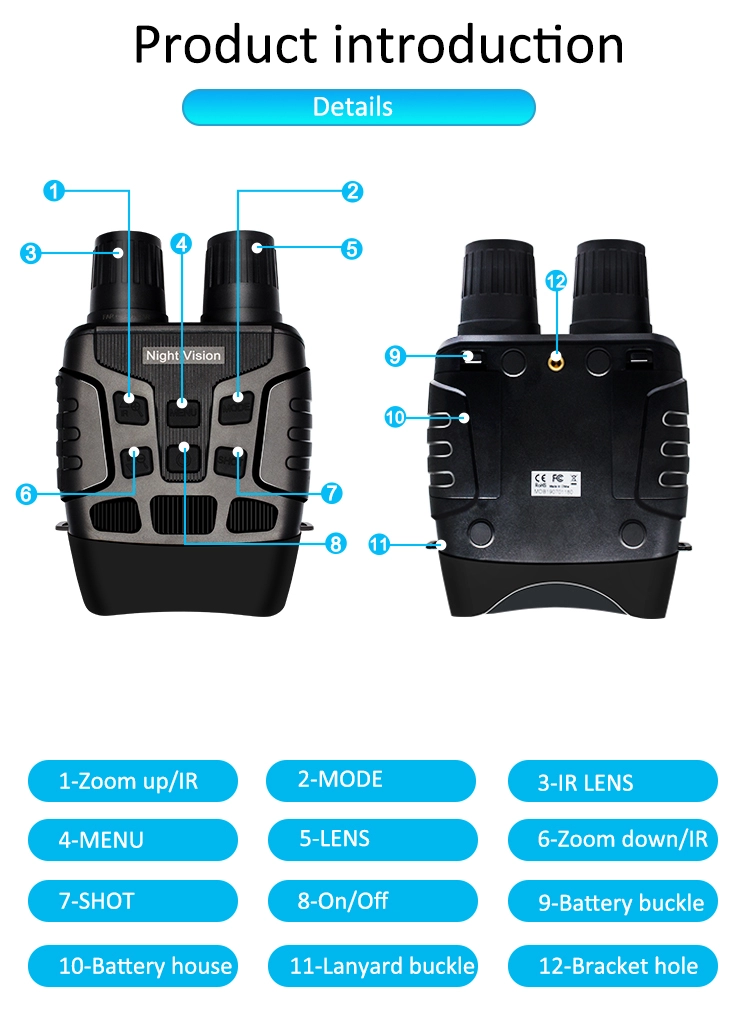

Operation Buttons 6 buttons
Operation Temperature -20℃ to +60℃
Storage Temperature -30℃ to +70℃
Dimensions & Weight approx. 206*138*58mm /600g
Accessory USB cable, manual



123 4 6 7 9 10 11

12 13

微信图片_20200509174352
